Aerial Survey Portfolio

[ Project 01 ]

Facade & Structure Documentation

Platform: DJI M4EDeliverables: Gaussian Splat, 3D Textured Mesh, Point Cloud

Ultra-high-resolution facade capture of a historic multi-story structure, producing three simultaneous deliverable types from a single flight mission. The Gaussian Splat model delivers photorealistic 3D visualization ideal for preservation documentation, insurance assessment, and architectural record. The 3D textured mesh provides the geometry base for large-area mapping and BIM integration. The classified point cloud delivers precise dimensional data for engineering and structural analysis.

Use cases

Historic preservationStructural inspectionInsurance documentationArchitectural recordBIM integration

View Interactive 3D Model

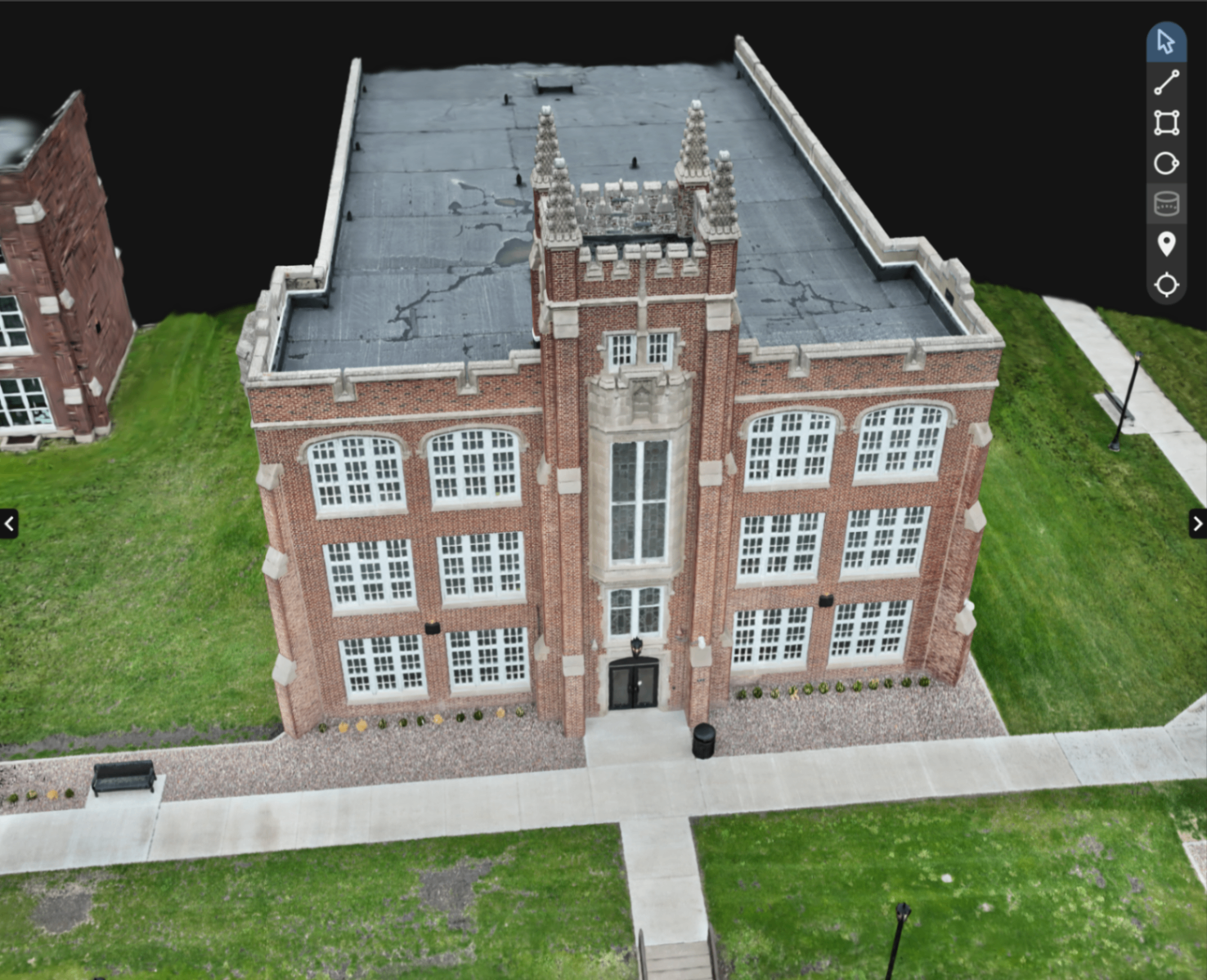

Photorealistic Gaussian Splat model of a historic multi-story structure — Gaussian Splat
Photorealistic visualization

Point cloud wireframe view of the same historic structure — Point Cloud
Engineering-grade dimensional data

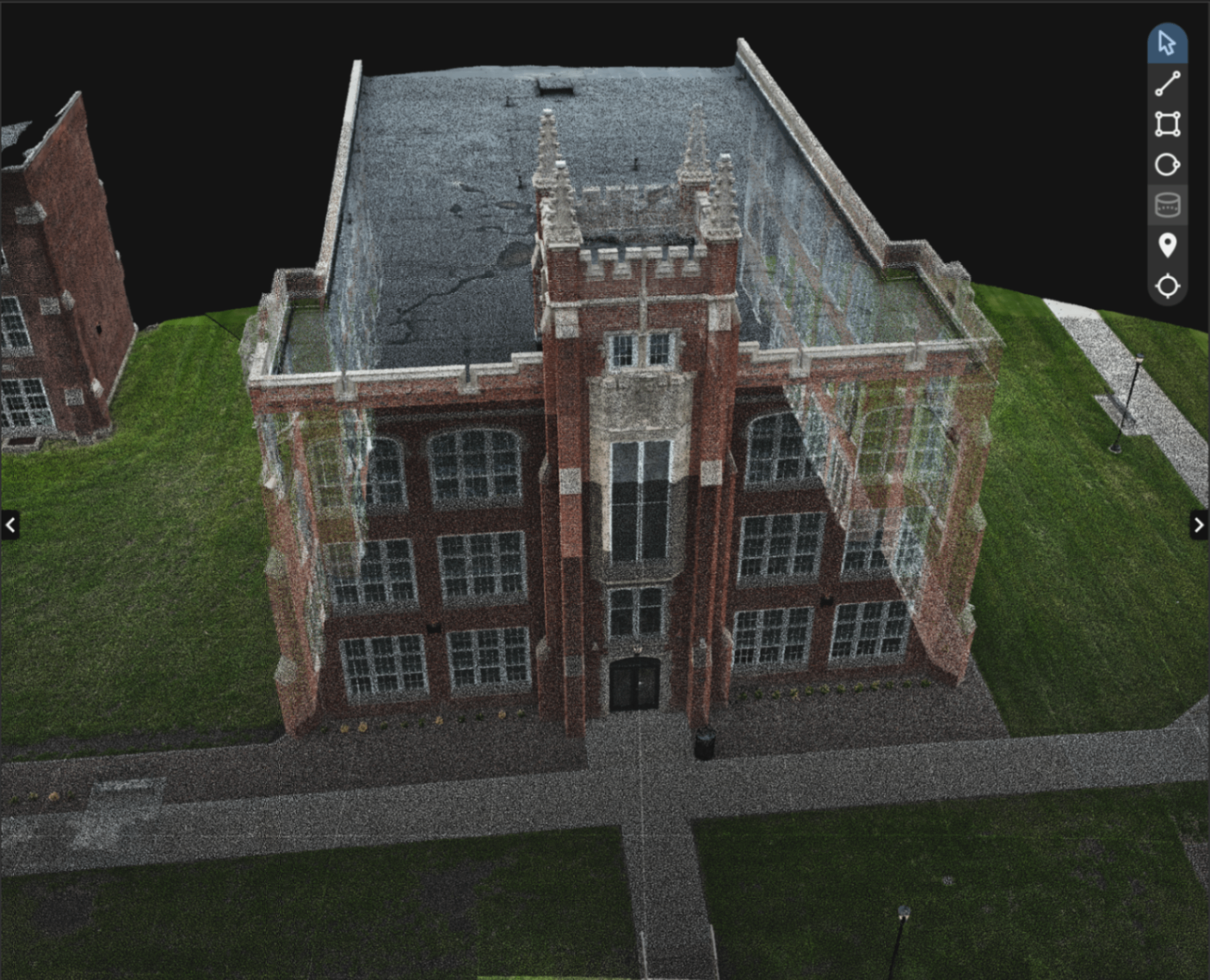

3D textured mesh with color applied to the facade model — 3D Textured Mesh
Geometry base for BIM and mapping

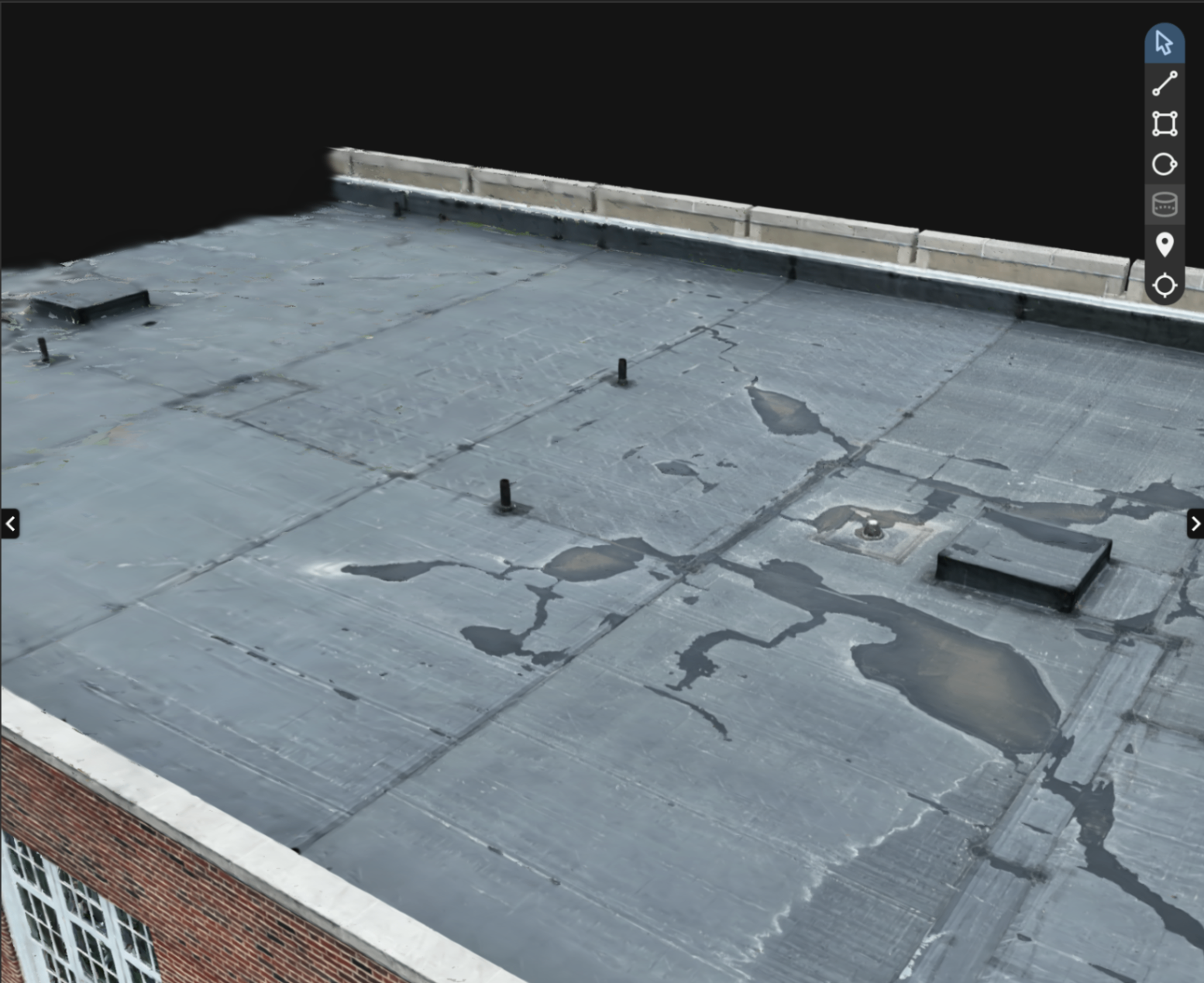

Roof inspection close-up from the structure documentation model — Roof Detail
Close-up inspection view

[ Project 02 ]

Water Line Corridor Survey

Platform: WingtraOnePayload: WingtraINSPECTDeliverables: Orthomosaic, Point Cloud, DTM, Contour Lines

Linear corridor survey of an underground water line right-of-way through dense mixed vegetation. Deliverables include a survey-grade orthomosaic with contour overlay, classified point cloud, and bare-earth DTM — all georeferenced and GIS-ready. Contour intervals extracted from LiDAR-class data support civil design, drainage analysis, and utility corridor documentation.

Use cases

Utility corridor mappingDrainage analysisCivil design supportEnvironmental documentation

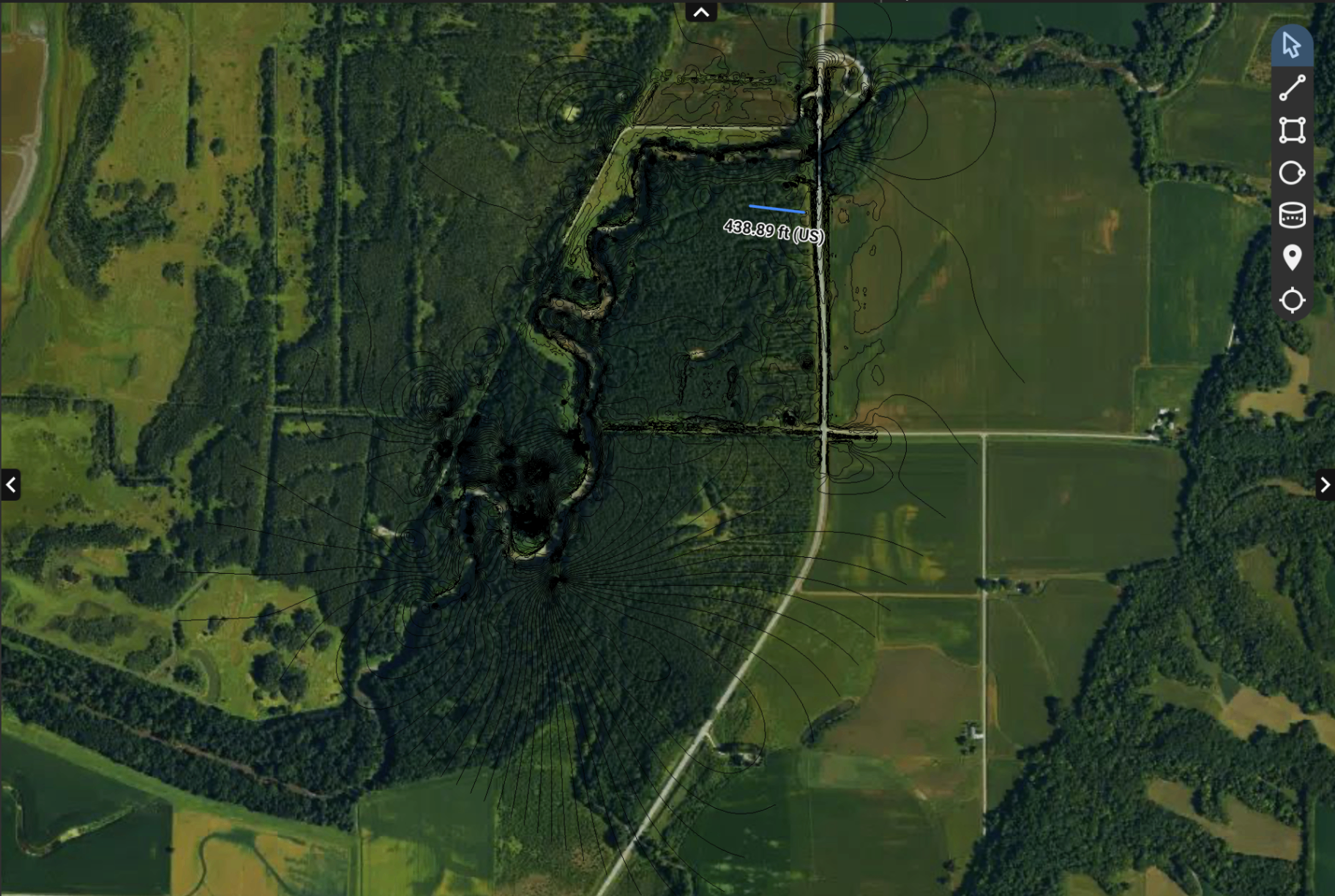

Orthomosaic of the water line corridor with contour lines overlaid on satellite imagery — Orthomosaic + Contours
Satellite base with elevation contours

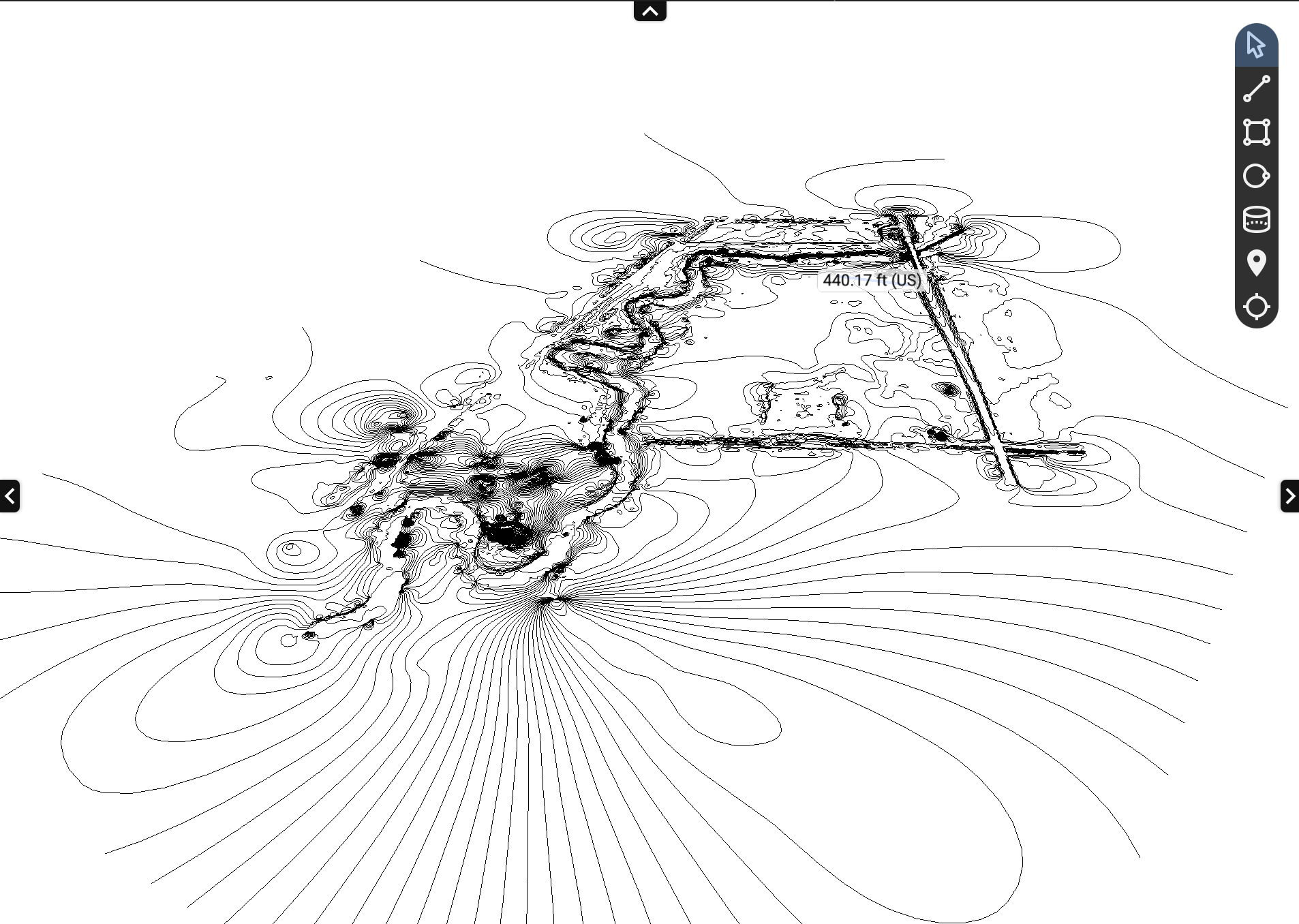

Bare-earth contour line extraction of the water line corridor — Contour Extraction
LiDAR-class contour lines, 440.17 ft (US)

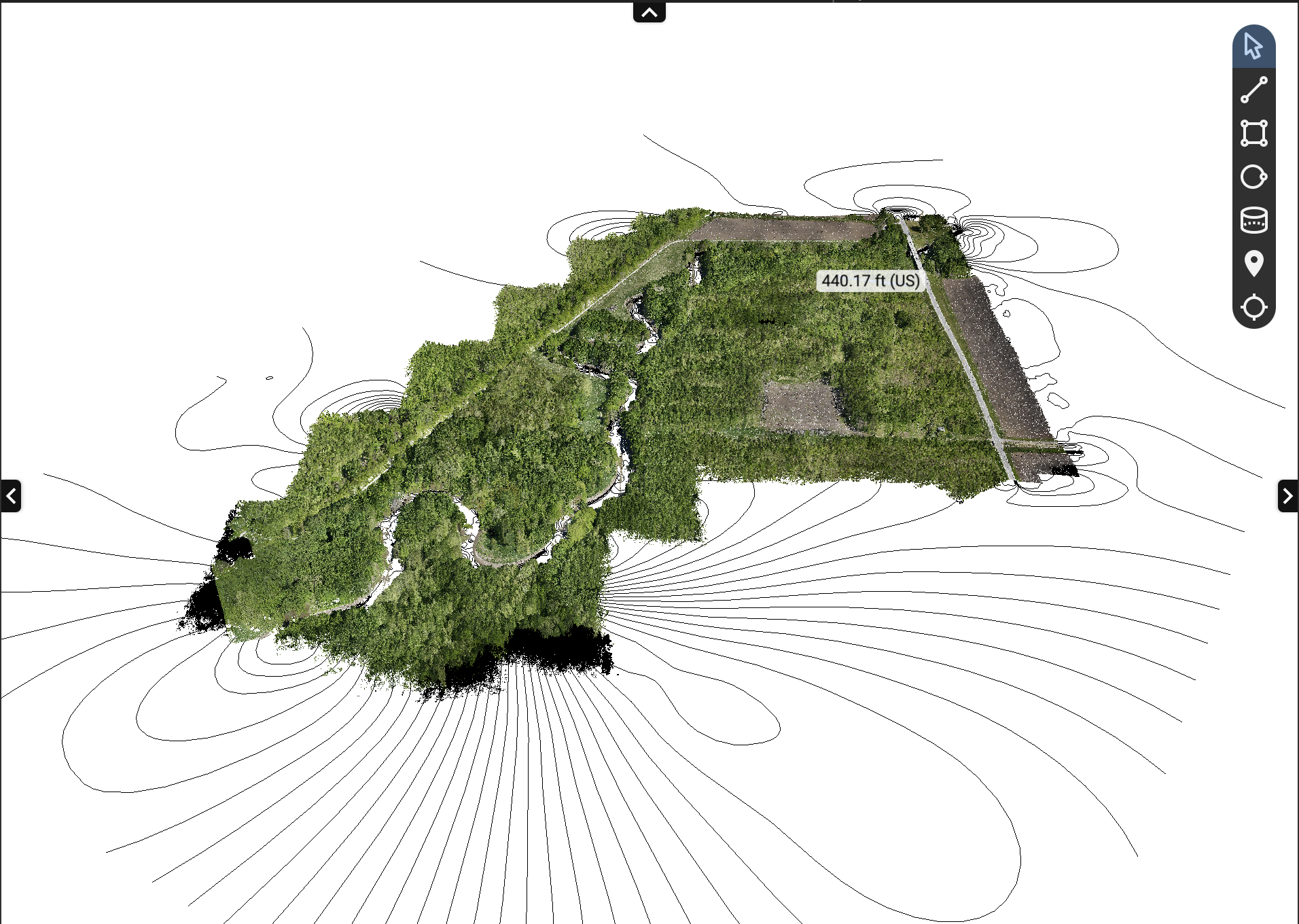

Classified point cloud of the water line corridor with contour overlay — Classified Point Cloud
Vegetation and bare-earth classification

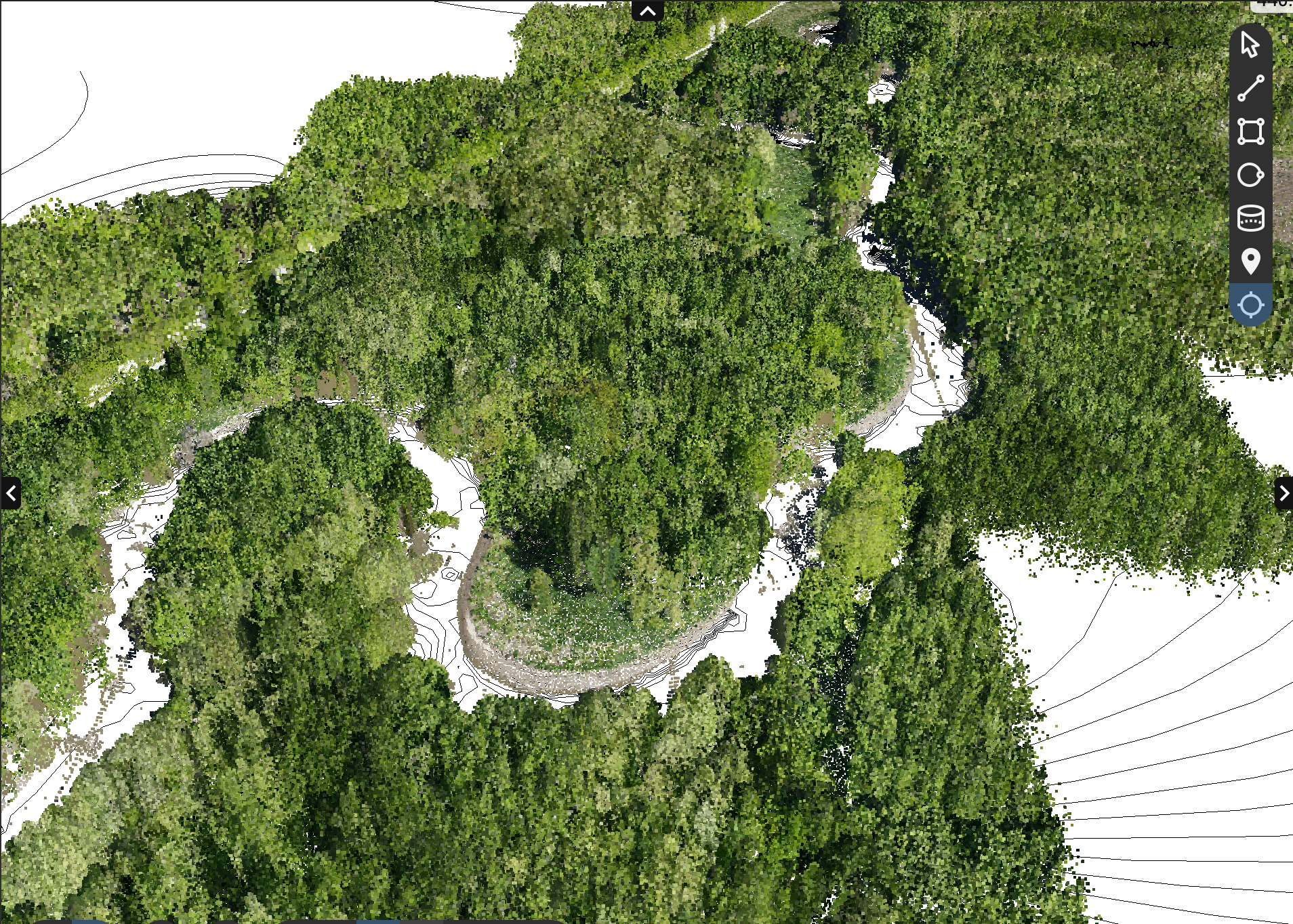

High-density point cloud detail of dense vegetated corridor canopy — Canopy Detail
Dense vegetation point cloud close-up

[ Project 03 ]

Earthwork Volumetrics & Quantity Measurement

Platform: DJI M4EDeliverables: Orthomosaic, DSM, Cut/Fill Volume Analysis

Construction site volumetric survey capturing multiple stockpile zones across an active job site. Deliverables include a survey-grade orthomosaic, digital surface model with elevation heat mapping, and precise cut/fill volume calculations for each designated zone. Volume 2 shown: Cut 9,547.97 yd³, Volume Differential 9,547.65 yd³. Data delivered in client-specified GIS and CAD formats for direct integration into project management and contractor workflows.

Use cases

Construction progress monitoringStockpile inventoryCut/fill verificationContractor payment verificationOwner reporting

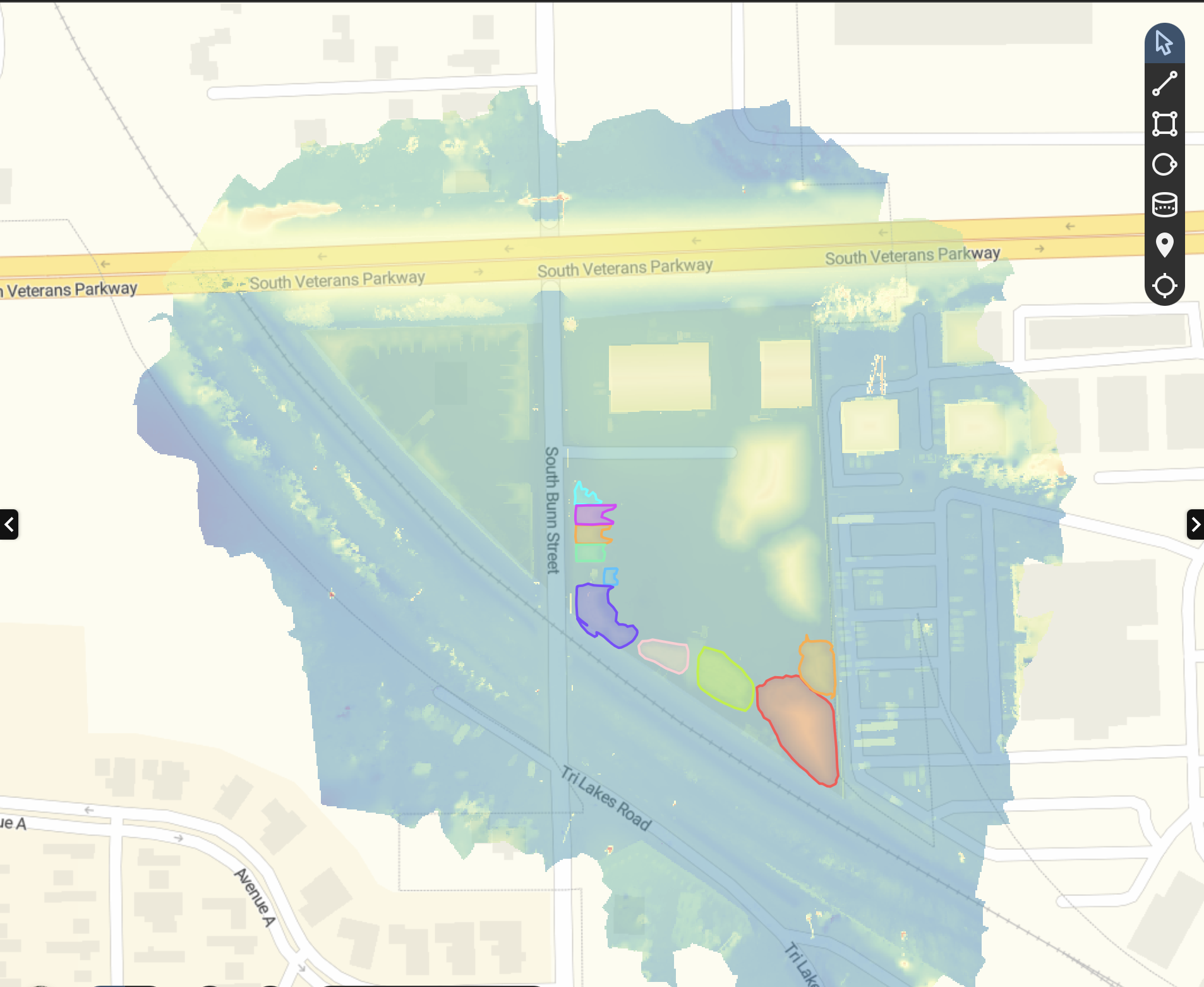

DSM elevation heat map with stockpile zones — DSM Heat Map
Elevation analysis and stockpile zones

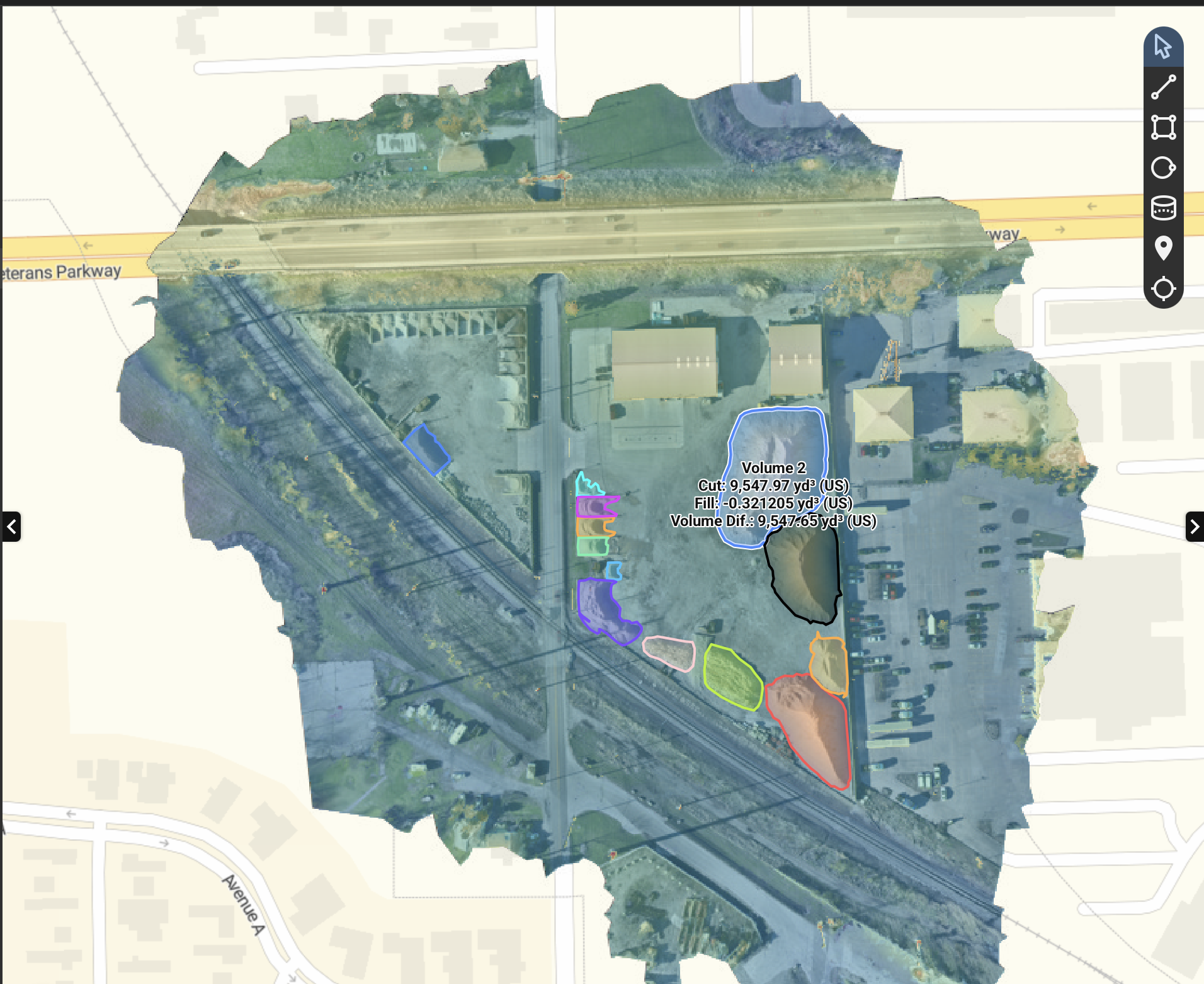

Orthomosaic with volume calculations and stockpile callouts — Orthomosaic + Volume Callouts
Volume 2: Cut 9,547.97 yd³

[ Project 04 ]

Linear Infrastructure Corridor Mapping

Platform: WingtraOneDeliverables: Orthomosaic, Corridor Alignment, GIS Delivery

High-resolution orthomosaic survey of a linear infrastructure corridor spanning multiple intersections and right-of-way boundaries. Corridor alignment overlaid on base map for immediate GIS integration. Deliverables support utility planning, right-of-way documentation, and municipal infrastructure management.

Use cases

Pipeline routingUtility right-of-wayMunicipal infrastructureRoad and rail corridor documentation

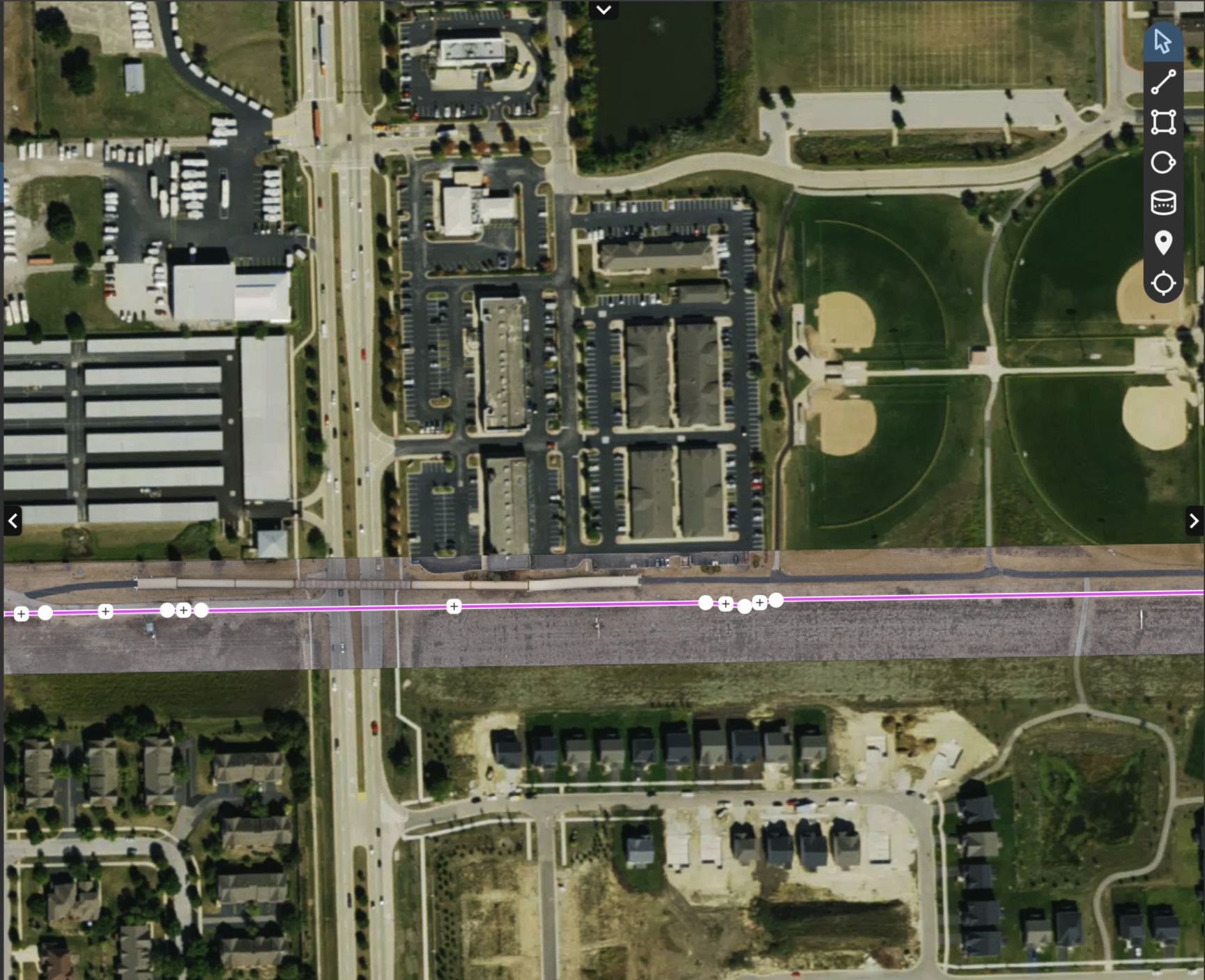

Aerial orthomosaic strip of the corridor overlaid on satellite imagery with alignment vector — Orthomosaic + Alignment
Survey strip on aerial basemap

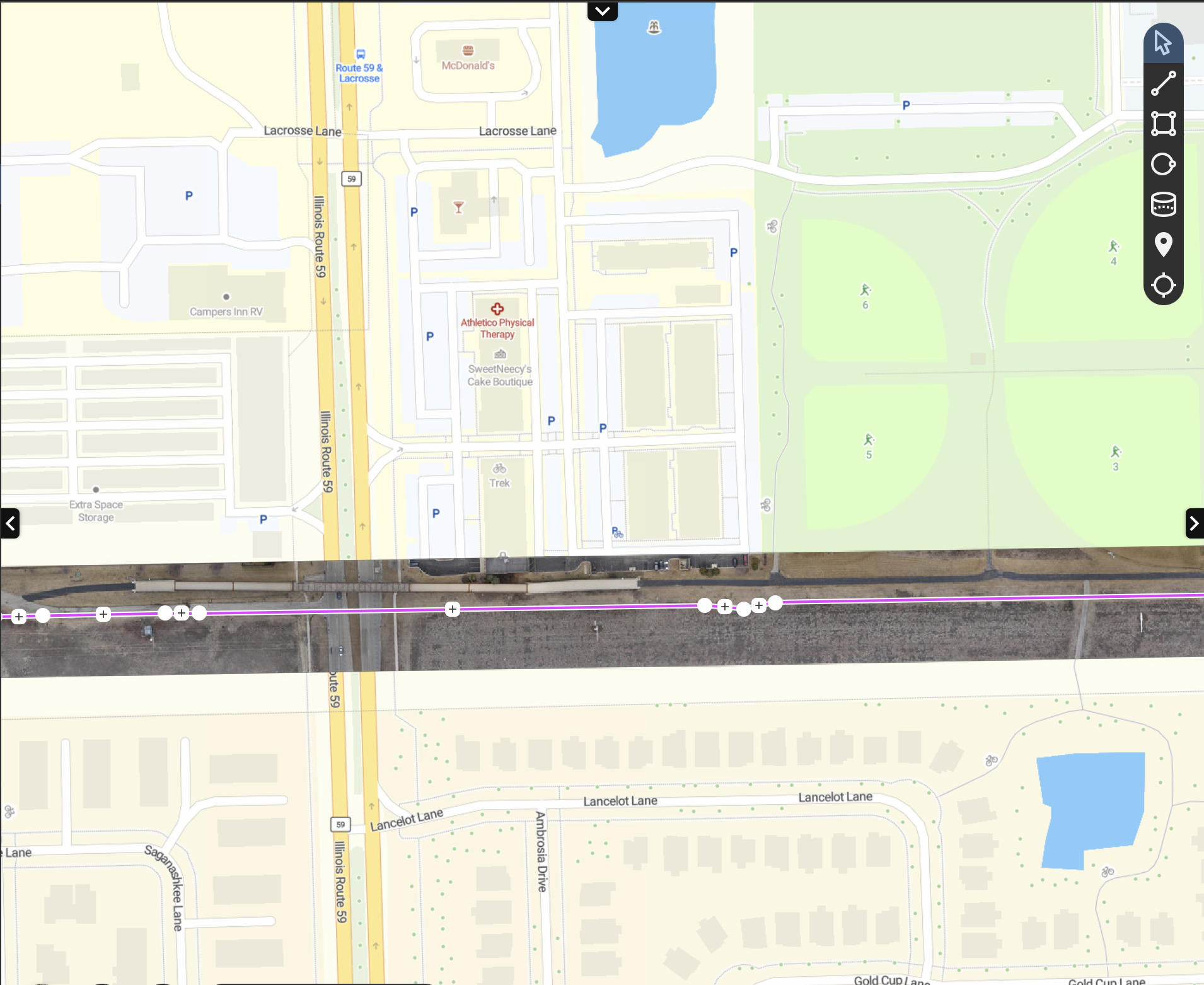

Corridor alignment overlaid on street basemap showing right-of-way through intersections — Alignment on Basemap
GIS-ready right-of-way overlay

[ Request a Quote ]

Ready to see what your project looks like from above?

WingWorx Geospatial delivers survey-grade aerial data for civil engineers, construction teams, municipalities, and infrastructure clients across the Dallas–Fort Worth metroplex and North Texas.

(903) 494-6169 | wingworxgeospatial.com

Request a Quote (903) 494-6169

Select project imagery courtesy of 9 Line Aerial Media
